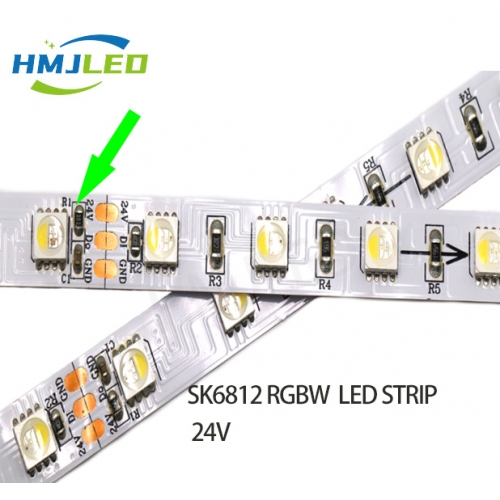

SK6812 SMD 5050 RGB 144 Leds 10mm Width PCB Digital Addressable RGB Led Strip
1) Control IC SK6812 inserted in MINI RGB LED diode, supporting numerous color-change effects.
2) White PCB and black PCB optional.
3) It comes in 1 meters per reel with 3PIN female/male JST SM connector on both end and separated Power /Ground Wires. Customized length is workable.
4) Flexible PCB material. Each LED/Pixel can be cut, there is cut lines every 6.9mm.
5) 144LEDS/M, 5V low voltage inputted, don‘t over 6V, otherwise you will destory the entire strip.
6) 8mm width PCB, 0.25mm thickness with 3M tape back side for non-weatherproof version. 10.5mm width and 4mm thickness with silicone tube for waterproof type.
7) It is only Date Pin for singal transfer, no Clock Pin.
8) Controller system: SD controller, DMX controller, Artnet and so on.
