Detail use information:

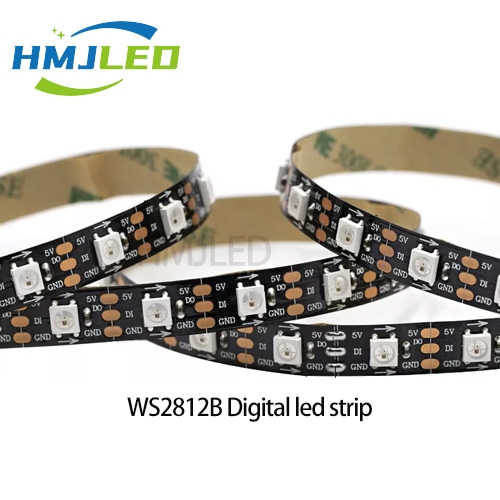

60LEDS addressable rgb led strip w2812b

1)Addressable full color led strip (WS2812b ) ----WS2811 ic built-in 5050 RGB led chip

2)144pcs led per one meter

3) individually control ----------1 ic& 1 led chip

4)same as our WS2801or APA 102C addressable strip ,this one cut-able each single led .

5)Sticky: with 3M adhesive on back side for sticky.

screw+silicon clip, or 3M adhesive back side.

W2812b 30leds/m , 60leds/m ,144leds/m led strip

TYPE 30leds/m 60leds/m 144 leds/m

IC W2812B W2812B W2812B

PCB width 10mm 10mm 12mm

standard length 5 meter/roll 5meter /roll 1 meter/roll

PCB color white/black white/black white/black

Voltage DC5V DC5v DC5v

Watts 7.2w/m 14.4w/m 34.56w/m

cutted per 1 LED per 1LED per 1 LED
